Lesson 7: Regression Analysis

📹 Video Overview​

📊 What We're Learning​

Regression - How to predict one variable from another using a line equation

🎯 The Big Picture: Correlation vs Regression​

What's the Difference?​

AspectCorrelationRegression
Question"Are X and Y related?""If X = 5, what is Y?"
OutputA number (r) from -1 to 1An equation: y = a + bx
PurposeMeasure relationshipPredict values
Example"Study time and grades have r = 0.75""If you study 5 hours, expect grade = 82"

Memory Hack: "Correlation → How much? Regression → How to predict?"​

  • Correlation: Tells you there's a relationship
  • Regression: Gives you the equation to USE that relationship

📈 What is Regression?​

Simple Definition: Finding the "best fit" line through your data points so you can predict new values.

Formal Definition: A statistical technique to understand the relationship between:

  • Dependent variable (Y): What you want to predict
  • Independent variable(s) (X): What you use to predict

Real-Life Examples​

ScenarioIndependent (X)Dependent (Y)
BusinessAdvertising spendSales revenue
EducationStudy hoursExam grade
Real EstateHouse size (sq ft)House price
HealthExercise hours/weekWeight loss

📊 Types of Regression​

1. Linear vs Non-Linear​

Linear Regression​

Shape: Straight line

Form: y = mx + b (or y = a + bx)

     Y
     |     •
     |   •
     | •           ← Straight line!
     |•
     |____________ X

Non-Linear Regression​

Shape: Curved line

Examples: Parabolas, exponentials, logarithms

     Y
     |         •
     |      •
     |   •          ← Curved!
     | •
     |____________ X

In this course: We focus on LINEAR regression only! ✅

2. Simple vs Multiple Regression​

TypeNumber of X variablesEquation Example
SimpleOne Xy = a + bx
MultipleMany X'sy = a + b₁x₁ + b₂x₂ + ...

In this lesson: We focus on SIMPLE regression (one X)! ✅

📚 Data Types​

Cross-Sectional Data​

What: Data collected at ONE point in time from different subjects

Example: Survey of 100 students' grades and study hours in ONE semester

Time Series Data​

What: Data collected over MULTIPLE time periods for one subject

Example: Company's monthly sales over 5 years

Memory Hack​

  • Cross-sectional: "Snapshot" 📸 (one moment, many people)
  • Time series: "Movie" 🎬 (many moments, one subject)

🎯 Key Terms You MUST Know​

Dependent Variable (Y)​

  • What you're trying to PREDICT or EXPLAIN
  • Also called: Response variable, Output, Target
  • Symbol: y or Y

Independent Variable (X)​

  • What you USE to predict
  • Also called: Predictor variable, Explanatory variable, Input
  • Symbol: x or X

Memory Hack: "Y depends on X"​

  • Y = Grade (depends on)
  • X = Study hours (the predictor)

📐 The Linear Equation: y = mx + b​

Two Forms (Same Thing!)​

Math ClassStatistics Class
y = mx + by = β₀ + β₁x
y = mx + by = a + bx

They're all the same! Just different notation.

What Each Part Means​

y = a + bx

Where:
y = predicted value (dependent variable)
a = intercept (where line crosses Y-axis)
b = slope (steepness of line)
x = independent variable (what you know)

🎢 Understanding SLOPE (b or β₁)​

What It Means​

"For every 1-unit increase in X, Y changes by b units"

Examples​

Slope = 2​

y = 5 + 2x

If x increases by 1 → y increases by 2
  • x = 1 → y = 5 + 2(1) = 7
  • x = 2 → y = 5 + 2(2) = 9
  • x = 3 → y = 5 + 2(3) = 11

Each step in X = 2 steps up in Y!

Slope = -3​

y = 10 - 3x

If x increases by 1 → y DECREASES by 3
  • x = 1 → y = 10 - 3(1) = 7
  • x = 2 → y = 10 - 3(2) = 4
  • x = 3 → y = 10 - 3(3) = 1

Each step in X = 3 steps DOWN in Y!

Memory Hack for Slope​

  • Positive slope: "Going uphill" ↗️ (as X ↑, Y ↑)
  • Negative slope: "Going downhill" ↘️ (as X ↑, Y ↓)
  • Slope = 0: "Flat road" → (X doesn't affect Y)

🎯 Understanding INTERCEPT (a or β₀)​

What It Means​

"The value of Y when X = 0"

Visual Example​

y = 5 + 2x

When x = 0:
y = 5 + 2(0) = 5  ← This is the intercept!
     Y
   10|
     |
    5|• ← Line crosses Y-axis here (intercept = 5)
     |
    0|____________ X
     0

Memory Hack: "Starting Point"​

The intercept is where your line starts when X = 0.

Note: Sometimes the intercept doesn't make practical sense!

  • Example: "House price when size = 0" → You can't have a 0 sq ft house!
  • It's just a mathematical necessity for the equation.

🧮 The Regression Model (Full Version)​

The Complete Formula​

yᵢ = β₀ + β₁xᵢ + εᵢ

Where:
yᵢ = actual Y value for observation i
β₀ = intercept (population parameter)
β₁ = slope (population parameter)
xᵢ = X value for observation i
εᵢ = ERROR term (residual)

Memory Hack: "Data = Model + Error"​

Actual value = Predicted value + Mistake

Why is there error?

  • Real data doesn't fall perfectly on a line!
  • Other factors affect Y (not just X)
  • Random variation

🎯 Residuals (Errors) - SUPER IMPORTANT!​

What is a Residual?​

The distance between actual Y and predicted Y

Residual (ε) = Actual Y - Predicted Y

Visual Understanding​

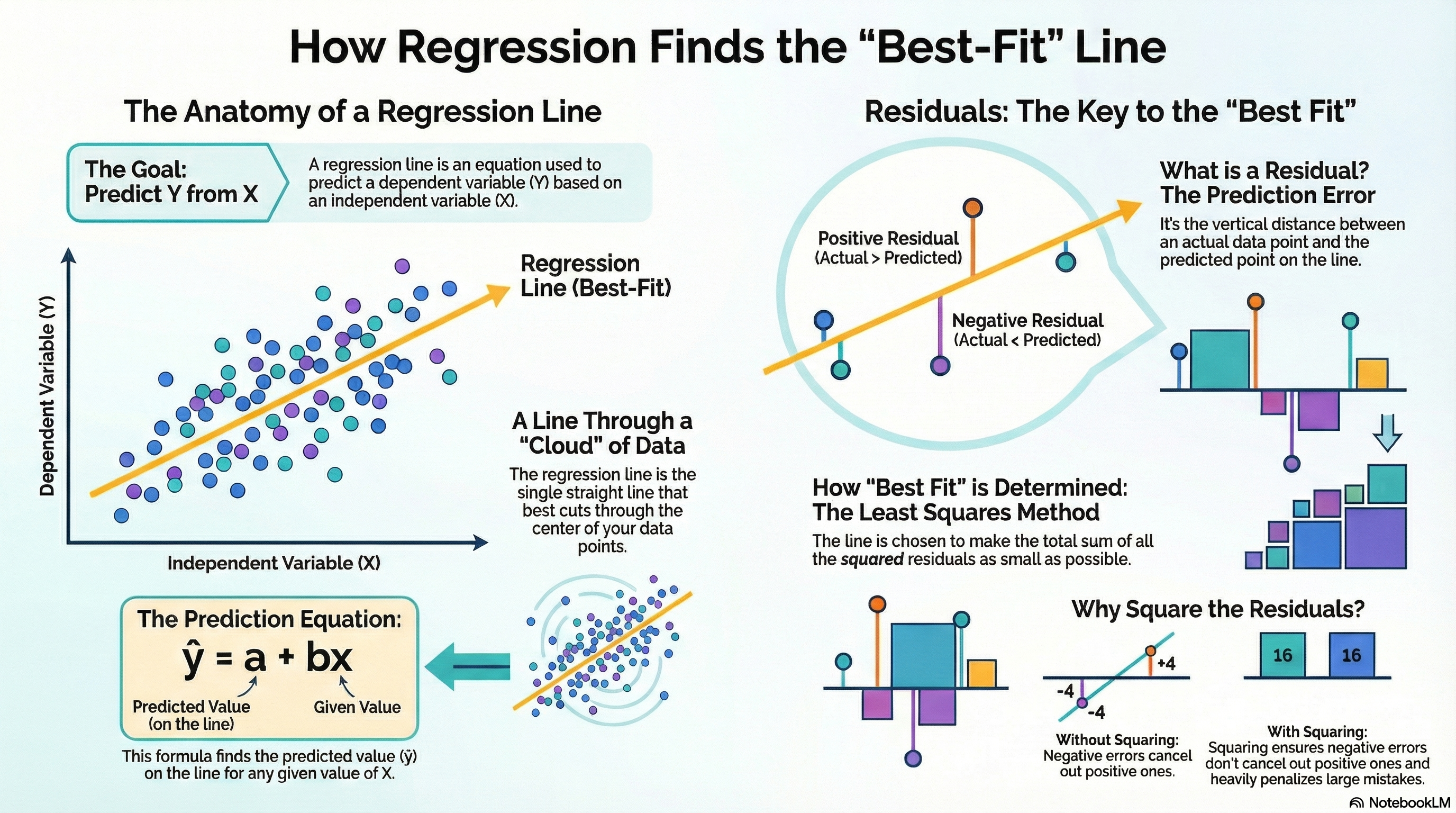

Residuals & the Best-Fit Line (Regression)

     Y
     |
   10|    • ← Actual point (Y = 10)
     |    |
    8|----• ← Predicted point (Ŷ = 8)
     |    ↑
     |    Residual = 10 - 8 = 2
     |____________ X

Positive vs Negative Residuals​

ResidualMeaningVisual
PositiveActual Y > Predicted YPoint ABOVE the line
NegativeActual Y < Predicted YPoint BELOW the line
ZeroActual Y = Predicted YPoint ON the line

🎯 Finding the Best Line (Method of Least Squares)​

The Goal​

Minimize the sum of squared residuals (errors)

Why Square the Residuals?​

  1. Gets rid of negative values
  2. Penalizes large errors more (like variance!)

Formula to Minimize​

Minimize: Σ(εᵢ)² = Σ(yᵢ - ŷᵢ)²

Where ŷᵢ = β₀ + β₁xᵢ

Memory Hack: "Best Fit = Smallest Mistakes²"​

  • We want the line where the total squared errors are as small as possible
  • This gives us ONE unique "best" line!

📐 The Formulas for β₁ and β₀​

Formula for Slope (β₁)​

β₁ = Σ[(xᵢ - x̄)(yᵢ - ȳ)] / Σ[(xᵢ - x̄)²]

Look familiar? This is basically:

β₁ = Covariance(x,y) / Variance(x)

Memory Hack: "How Y changes with X"​

  • Numerator: How X and Y vary together
  • Denominator: How much X varies by itself
  • Result: Change in Y per unit change in X

Formula for Intercept (β₀)​

β₀ = ȳ - β₁x̄

Memory Hack: "Adjust the starting point"​

  • Take the average of Y
  • Adjust it based on average of X and the slope
  • This ensures the line goes through (x̄, ȳ)

Cool Fact: The regression line ALWAYS passes through the point (x̄, ȳ)! ✨

📝 Complete Example: Step-by-Step​

Given Data​

X (Advertising $1000s)Y (Sales $1000s)
200180
250230
300280
350310

Find the regression equation: y = β₀ + β₁x

Step 1: Calculate Means​

x̄ = (200 + 250 + 300 + 350) / 4 = 1100 / 4 = 275

ȳ = (180 + 230 + 280 + 310) / 4 = 1000 / 4 = 250

Step 2: Create a Table for Calculations​

ixᵢyᵢ(xᵢ - x̄)(yᵢ - ȳ)(xᵢ - x̄)(yᵢ - ȳ)(xᵢ - x̄)²
1200180-75-705,2505,625
2250230-25-20500625
33002802530750625
435031075604,5005,625
Sum11,00012,500

Step 3: Calculate Slope (β₁)​

β₁ = Σ[(xᵢ - x̄)(yᵢ - ȳ)] / Σ[(xᵢ - x̄)²]

β₁ = 11,000 / 12,500 = 0.88

Interpretation: For every 1,000increaseinadvertising,salesincreaseby1,000 increase in advertising, sales increase by 880!

Step 4: Calculate Intercept (β₀)​

β₀ = ȳ - β₁x̄

β₀ = 250 - (0.88 × 275)

β₀ = 250 - 242 = 8

Step 5: Write the Final Equation​

y = 8 + 0.88x

Or more formally:
Sales = 8 + 0.88(Advertising)

In words:

  • Base sales (when advertising = 0) = $8,000
  • Each 1,000inadvertisingadds1,000 in advertising adds 880 in sales

Step 6: Make Predictions!​

Question: If we spend $400,000 on advertising, what will sales be?

y = 8 + 0.88(400)
y = 8 + 352
y = 360

Predicted sales = $360,000

🎯 The Prediction Process​

Example Flow​

  1. Given: x = 320 (advertising)
  2. Equation: y = 8 + 0.88x
  3. Calculate: y = 8 + 0.88(320) = 8 + 281.6 = 289.6
  4. Answer: Predicted sales = $289,600

🧠 Key Insights​

1. Why Linear Regression Works​

Memory Hack: "Straight line through the cloud"

  • Your data points form a "cloud"
  • Regression finds the straight line that best represents that cloud
  • Minimizes the distance of all points from the line (squared)

2. The Line Always Goes Through (x̄, ȳ)​

Why? Because of how β₀ is calculated!

  • This is a built-in property
  • Useful for checking your work

3. Slope Shows Direction AND Magnitude​

  • Sign: Direction of relationship
    • Positive → both increase together
    • Negative → one increases, other decreases
  • Size: How strong the relationship
    • Slope = 0.5 → weak relationship
    • Slope = 10 → strong relationship

📊 Assumptions of Linear Regression​

For regression to work well, we assume:

  1. Linearity: Relationship is actually linear (not curved)
  2. Independence: Observations don't affect each other
  3. Constant variance: Spread of residuals is constant (homoscedasticity)
  4. Normality: Residuals are normally distributed

Memory Hack: "LINE"​

  • Linearity
  • Independence
  • Normality
  • Equal variance

Don't worry too much about these now - just know they exist!

💡 Common Mistakes to Avoid​

1. Extrapolation​

Don't predict outside your data range!

Example:

  • Your data: x = 200 to 350
  • Don't predict for x = 1000 (way outside range!)
  • The relationship might not hold there

2. Confusing Correlation and Causation​

Regression doesn't prove causation!

Example:

  • Ice cream sales predict drowning deaths
  • But ice cream doesn't CAUSE drowning!
  • Both caused by summer weather

3. Ignoring Outliers​

One extreme point can mess up your whole line!

🎯 Quick Reference Formulas​

REGRESSION EQUATION:
y = β₀ + β₁x

SLOPE:
β₁ = Σ[(xᵢ - x̄)(yᵢ - ȳ)] / Σ[(xᵢ - x̄)²]

INTERCEPT:
β₀ = ȳ - β₁x̄

RESIDUAL:
εᵢ = yᵢ - ŷᵢ

PREDICTION:
Plug in your X value into y = β₀ + β₁x

🧠 Memory Hacks Summary​

ConceptMemory Trick
Regression"Find the best line to predict"
Correlation vs Regression"How much? vs How to predict?"
Slope"Change in Y per 1-unit change in X"
Intercept"Starting point when X = 0"
Residual"Actual minus Predicted"
Best fit"Smallest mistakes squared"
Data types"Snapshot vs Movie"
Assumptions"LINE"

📝 Practice Problem Walkthrough​

Problem​

Given this data, find the regression equation:

Study Hours (X)Grade (Y)
270
480
685
895

Solution Steps​

Step 1: Means

  • x̄ = (2+4+6+8)/4 = 5
  • ȳ = (70+80+85+95)/4 = 82.5

Step 2: Calculate Slope

  • Create the table (homework!)
  • β₁ = Σ[(xᵢ - x̄)(yᵢ - ȳ)] / Σ[(xᵢ - x̄)²]
  • β₁ = 50 / 20 = 2.5

Step 3: Calculate Intercept

  • β₀ = 82.5 - 2.5(5) = 82.5 - 12.5 = 70

Step 4: Final Equation

Grade = 70 + 2.5(Study Hours)

Interpretation: Each extra study hour predicts a 2.5-point grade increase!

🎓 Exam Tips​

  1. Always show your work: Partial credit matters!
  2. Label your axes: In scatter plots, always label X and Y
  3. Units matter: Include units in your interpretation
  4. Check your slope sign: Does it make sense? (more study → higher grade = positive ✓)
  5. Round appropriately: Usually 2-3 decimal places is fine

🔗 Connection to Previous Lessons​

Previous ConceptHow It Relates to Regression
Mean (x̄, ȳ)Line always passes through (x̄, ȳ)
VarianceUsed in denominator of slope formula
CovarianceUsed in numerator of slope formula
Correlation (r)Related to slope: both measure relationship strength
Standard DeviationRelated to spread of residuals

Big Picture: Everything builds on what came before! 🏗️

Good luck! Remember: Regression lets you PREDICT the future based on the past! 🔮📈
